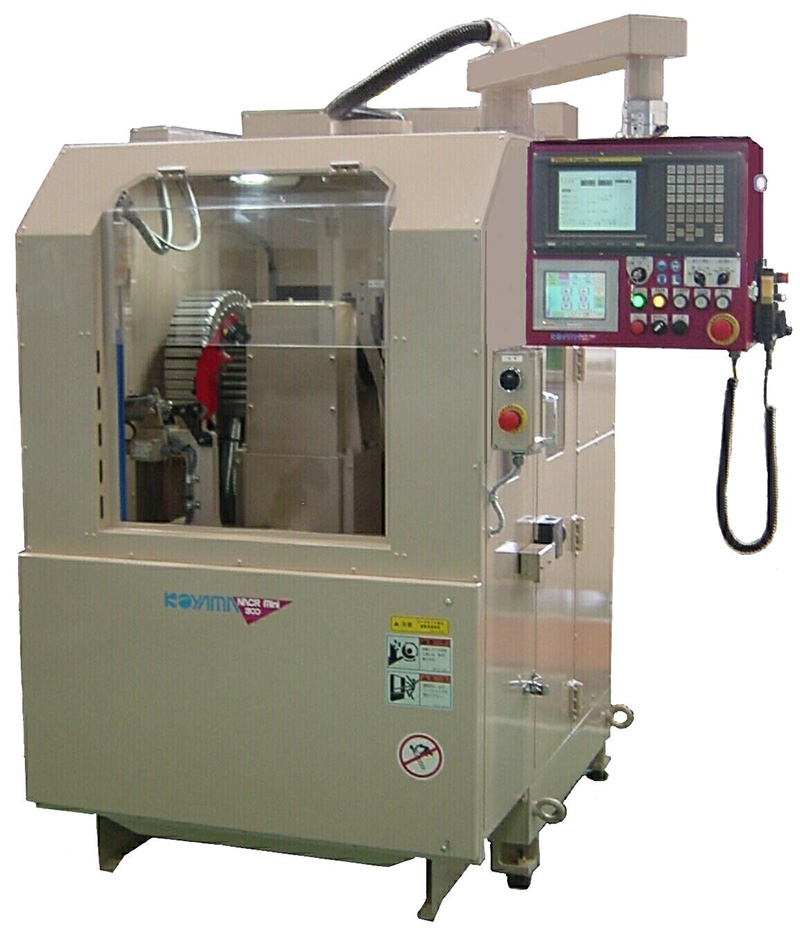

ASN5i-2MD2R-331
The best deburring machine to improve the aluminum casting finishing process.
- ・Best deburring machine for small & medium sized aluminum castings.
- ・Two rotating auxiliary spindle heads
- ・Suitable for the finishing complex shape castings.
- ・Tool-head now powered by servomotor for improved efficiency.
Features
NC axis drive part
- 1. Small footprint.
- 2. One operator can perform multiple machine operations.
- 3. Program creation is simple and easy.
- 4. Simple operation with high function.
- 5. Quck chang- less than 5min. to change fixtures, programs and tools.
- 6. Dry cutting with diamond tool.
- 7. High speed and efficient processing enables productivity and a higher finishing quality of product.
2 tools can be switched depends on the area.
-
Deburring by end mill
Outline of specifications
| Max. machinable size | φ300×H200 8Kg (*Load capacity is within 13Kg) |
|---|---|
| Main tool-head | Use 2 different or same type of diamond tool |
| Auxiliary tool-head driving motor | ２.２Kw×2sets (High speed type, Inverter drive) |
| Wheel tilt for max. | 270°(NC control drive) |
| Control driving motor,Number of NC axis | 5 axes AC servo controlled by ＮＡＣＲ |
| Overall Dimensions | W1625×D1910×H2041 |
| Weight | 1,400Kg |
